HyPlex® Minor Maintenance Kit
HyPlex® Minor Maintenance Kit
Part:712101-1
Create account
or
Login
to see prices.
| Name | Qty | Description |

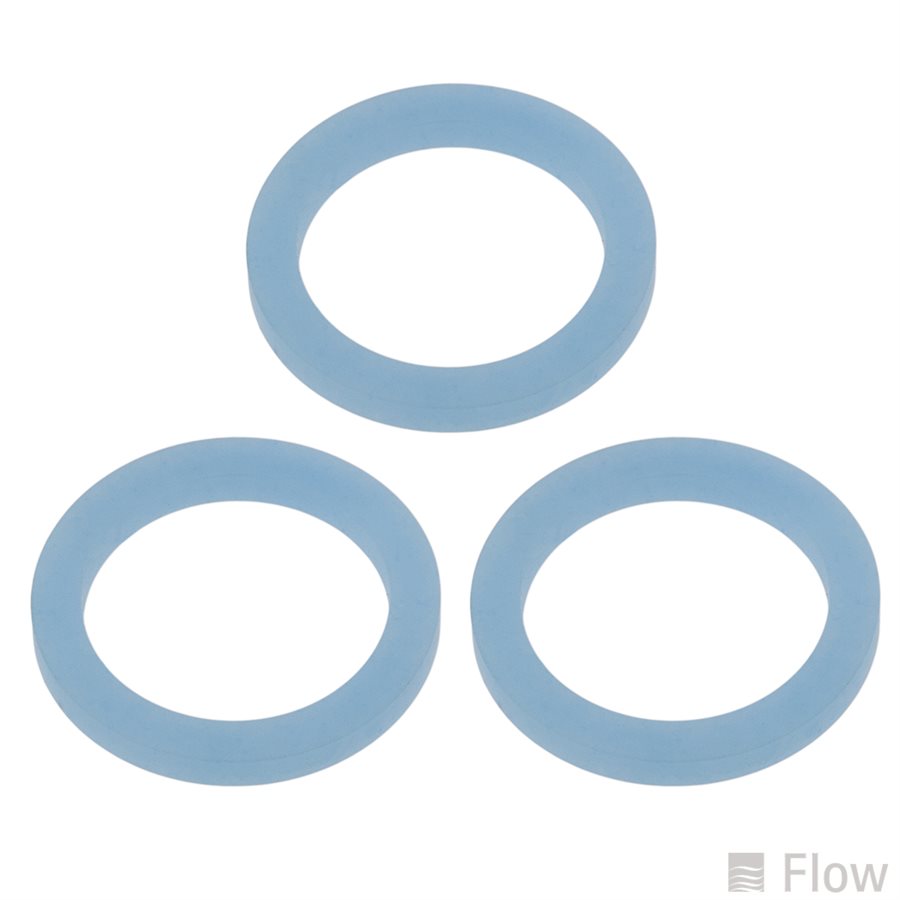

| 011051-1 | 3 | SEAL;DYNAMIC;EAGLE;5/16 ID;HDS WHITE |

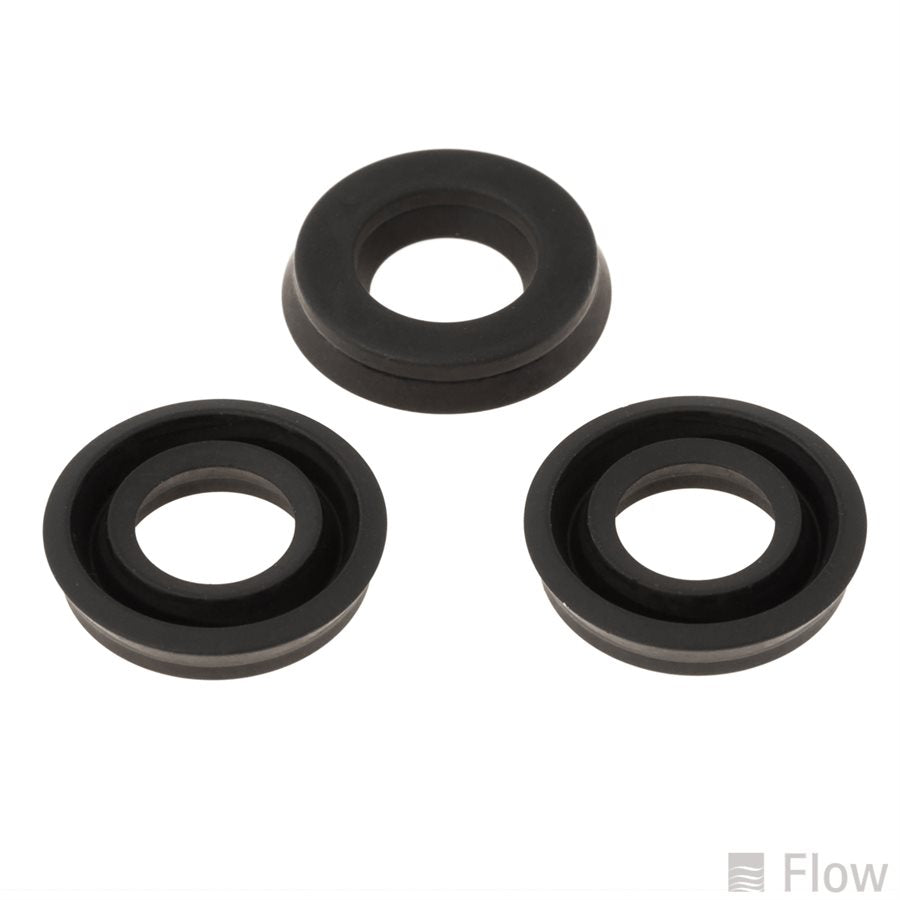

| A-00621-33 | 3 | SEAL;ROD;NA;DISOGRIN;7/16 ID;11/16 INCH OD;1/8 INCH |

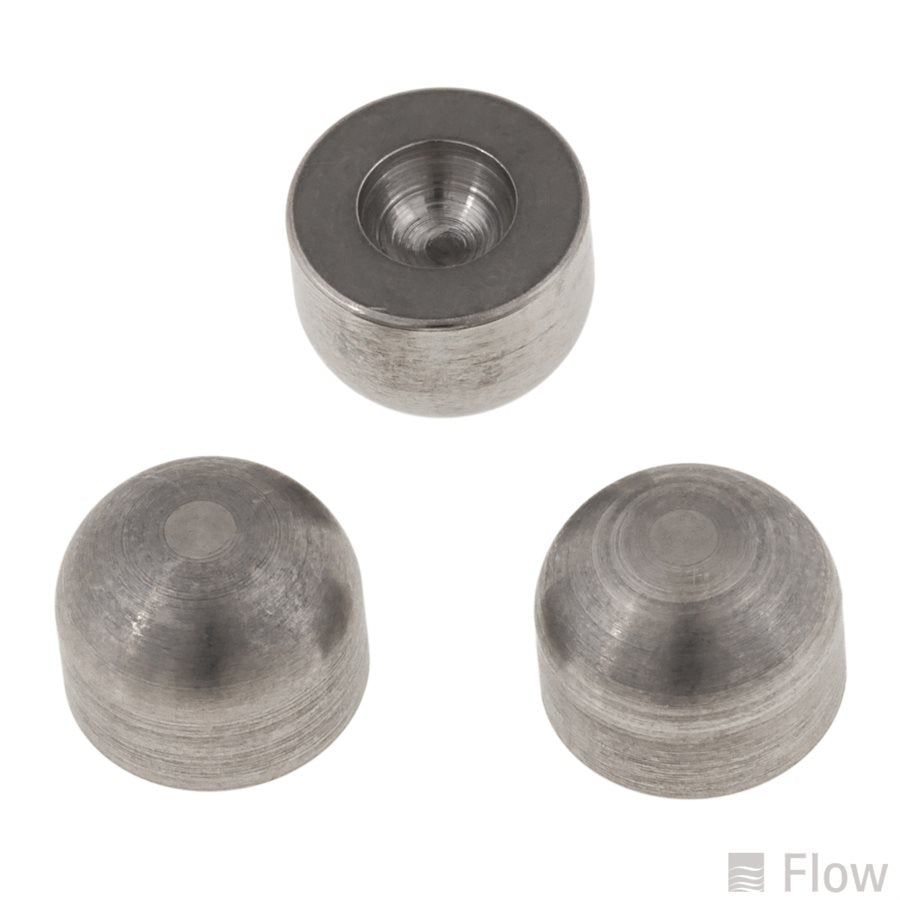

| 011042-1 | 3 | POPPET;INLET;CHECK VALVE;EAGLE;STAINLESS STEEL |

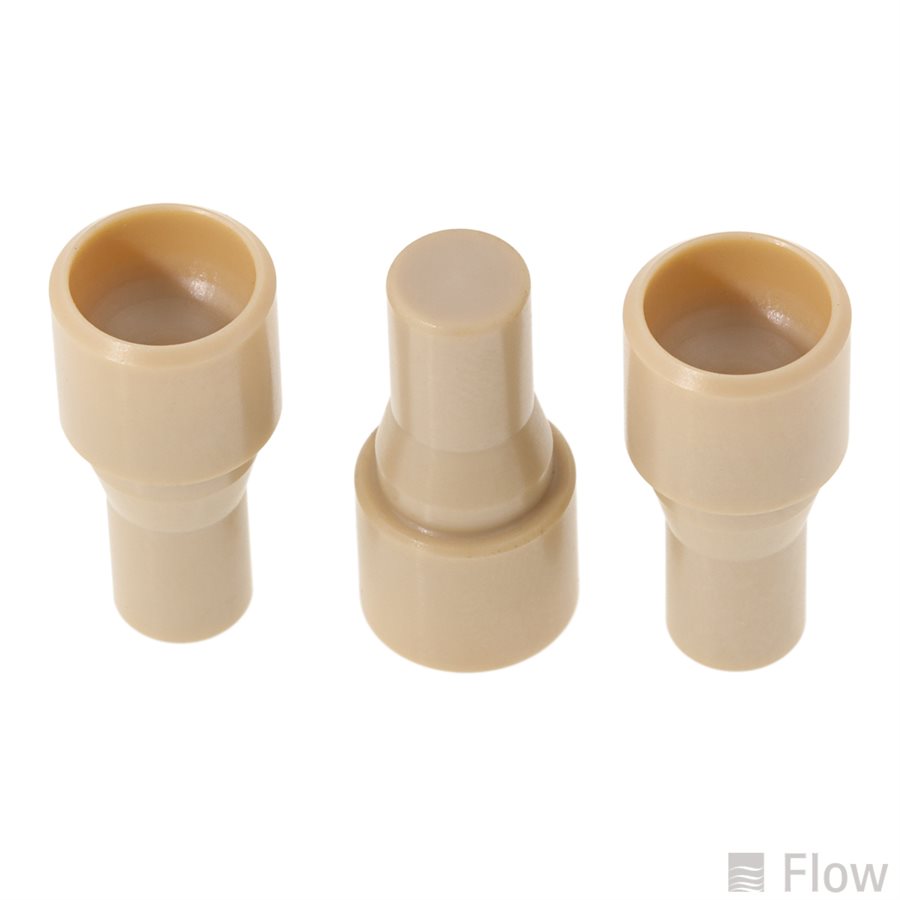

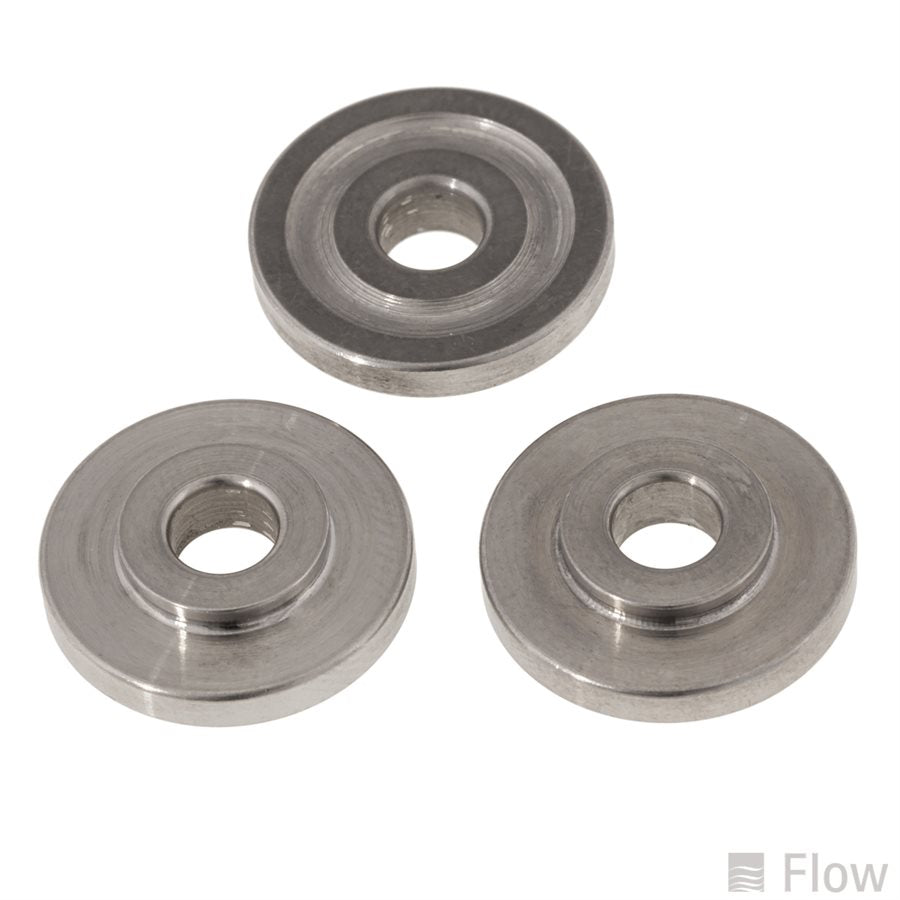

| 011040-1 | 3 | GUIDE;NA;OUTLET POPPET;CHECK VALVE;EAGLE;NA |
| 011039-1 | 3 | POPPET;OUTLET;CHECK VALVE;HYPLEX;STAINLESS STEEL |

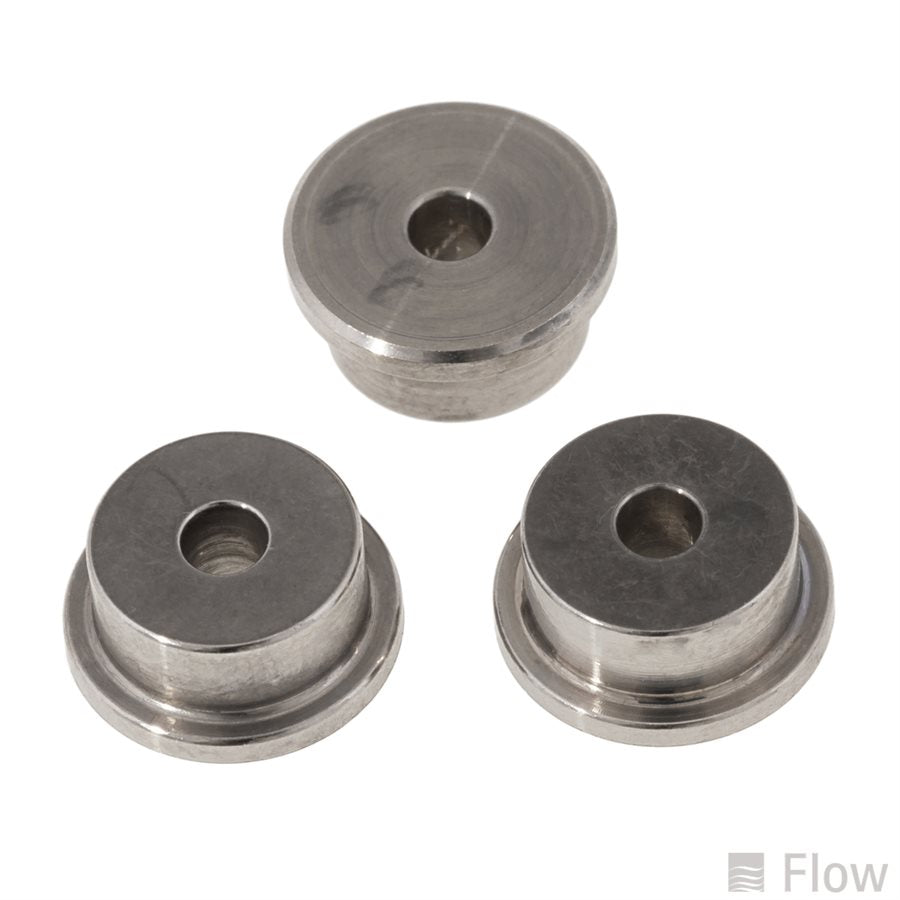

| 011041-1 | 3 | SEAT;OUTLET;POPPET;EAGLE;STAINLESS STEEL |
| 042145-1 | 1 | POPPET/SEAT ASSEMBLY;PRESSURE CONTROL VALVE;HYPLEX HYBRID |

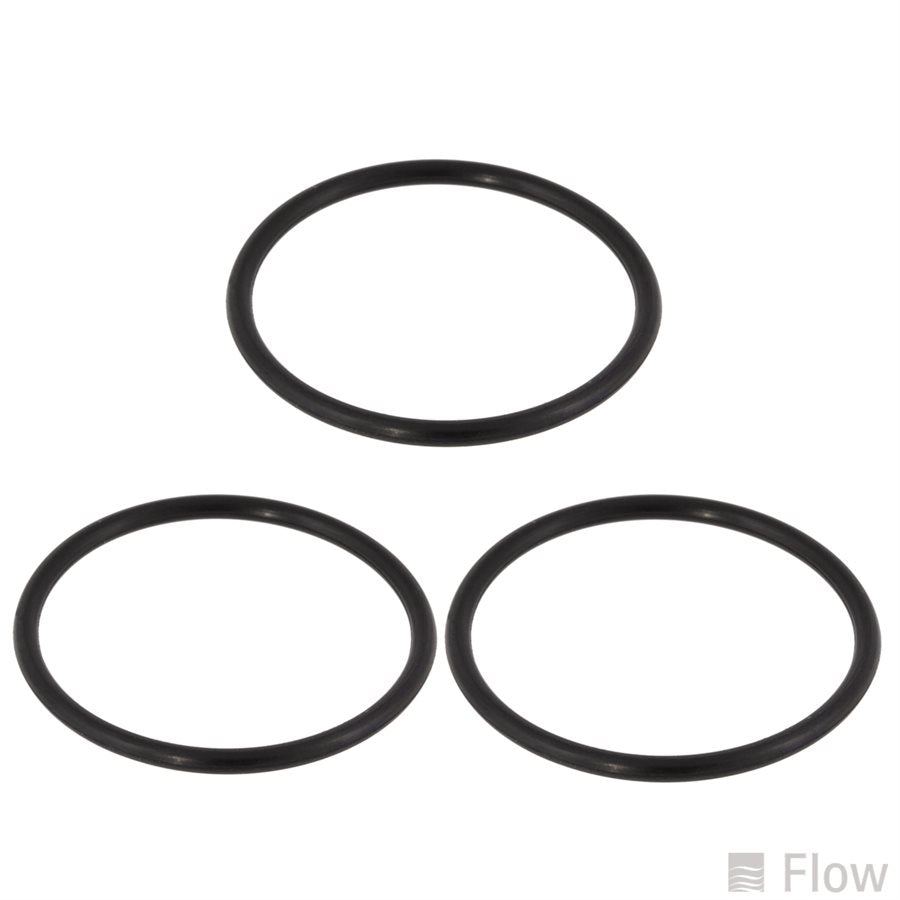

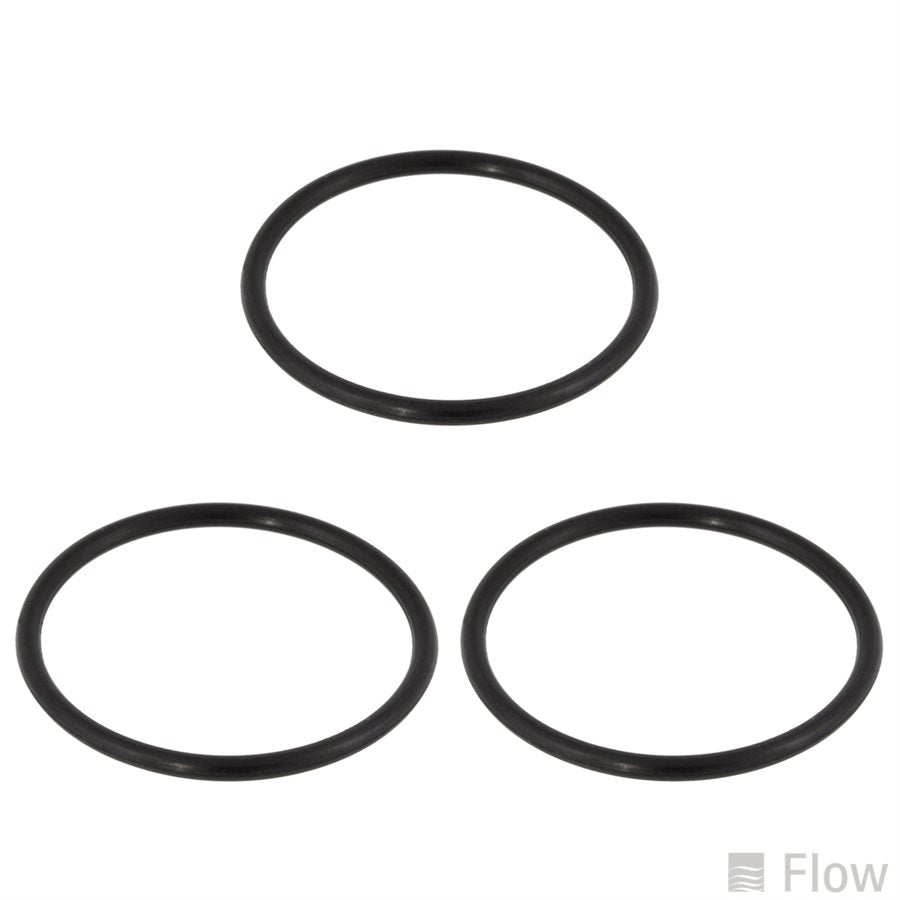

| A-0275-033 | 3 | O-RING;BUNA-N;70 (SHORE A);-033 |

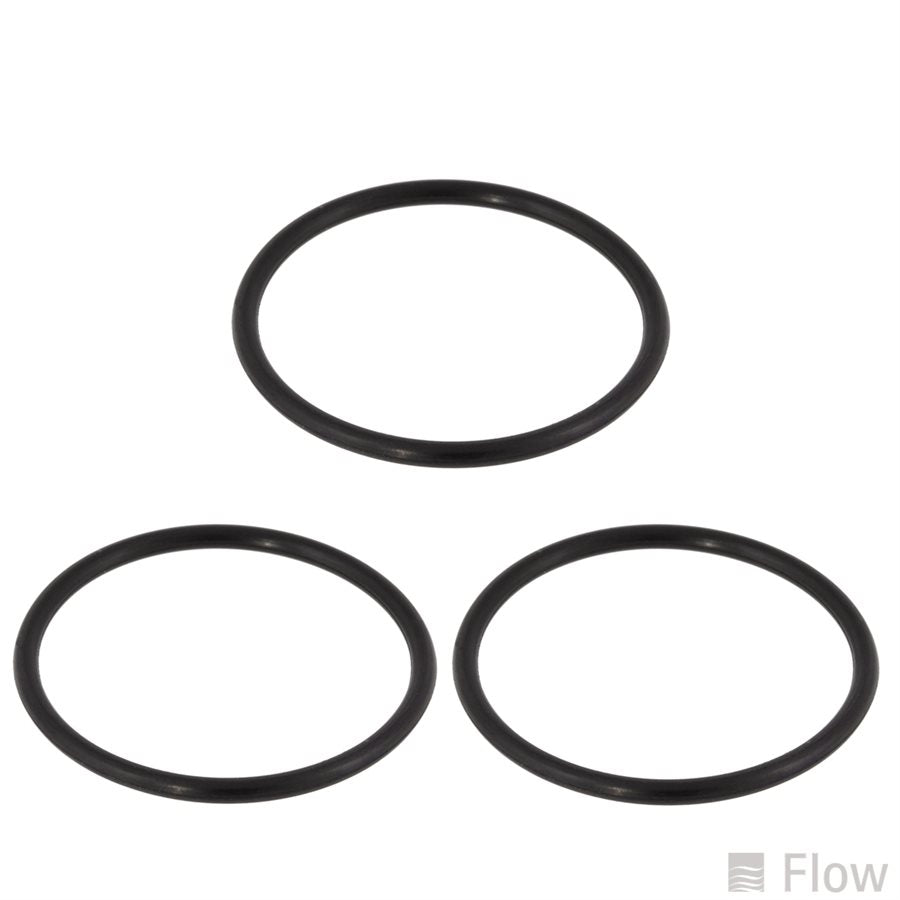

| A-0275-025 | 3 | O-RING;BUNA-N;70 (SHORE A);-025 |
| A-1903 | 1 | EMERY PAPER;320 GRIT;WITH ADHESIVE BACK |

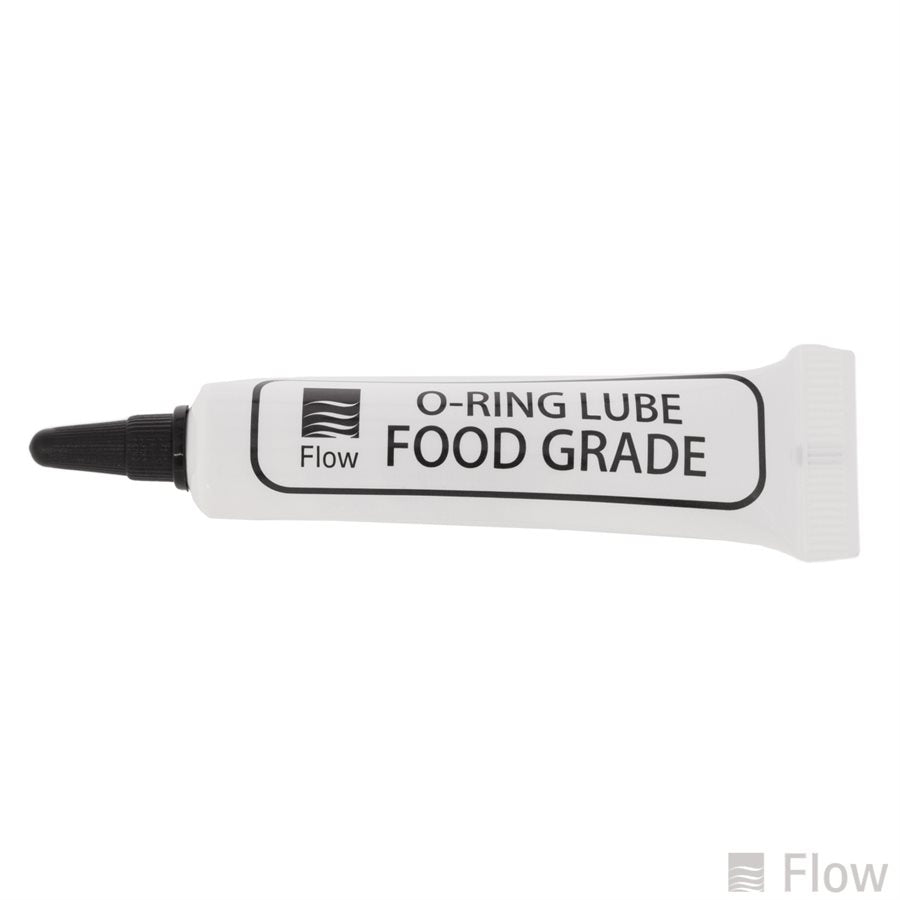

| A-4689 | 1 | GREASE;FOOD GRADE;1/4 OUNCE TUBE |
| SB-0168 | 1 | SB;INSTALLING HYPLEX MINOR MAINT. KIT |

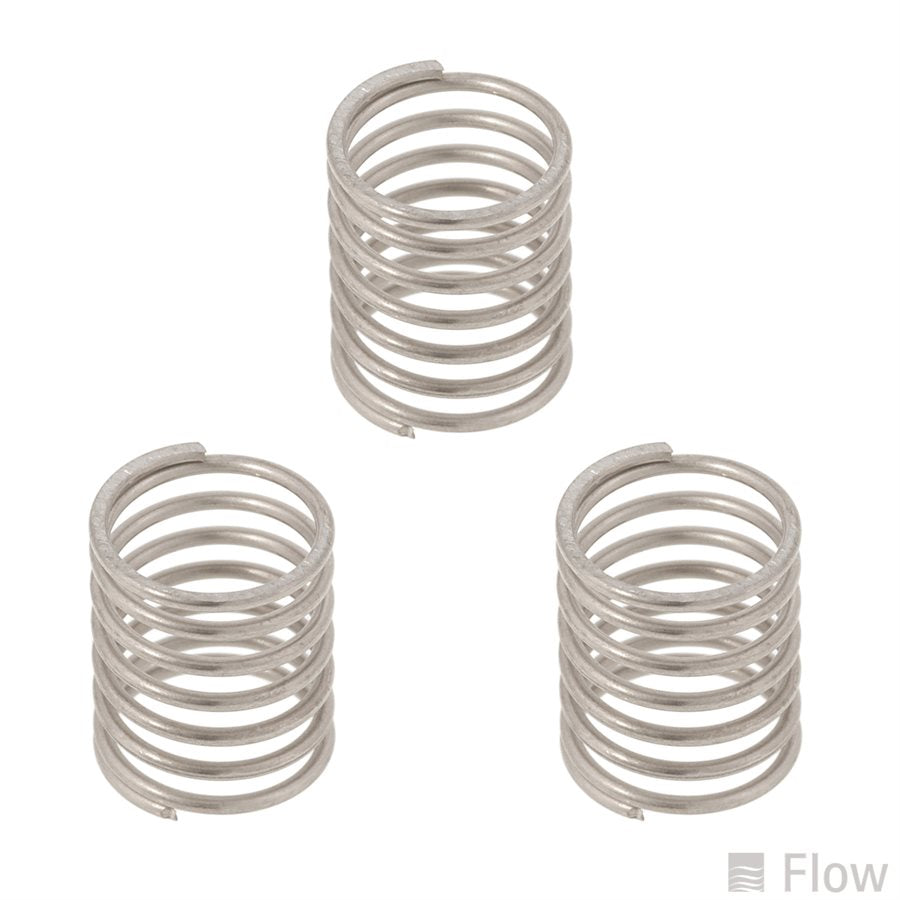

| A-9223 | 3 | SPRING;COMPRESSION;STAINLESS STEEL;NONE;.27 ID;.322 OD;.40 INCH;4.0 LBS/IN;CLOSED & GROUND |

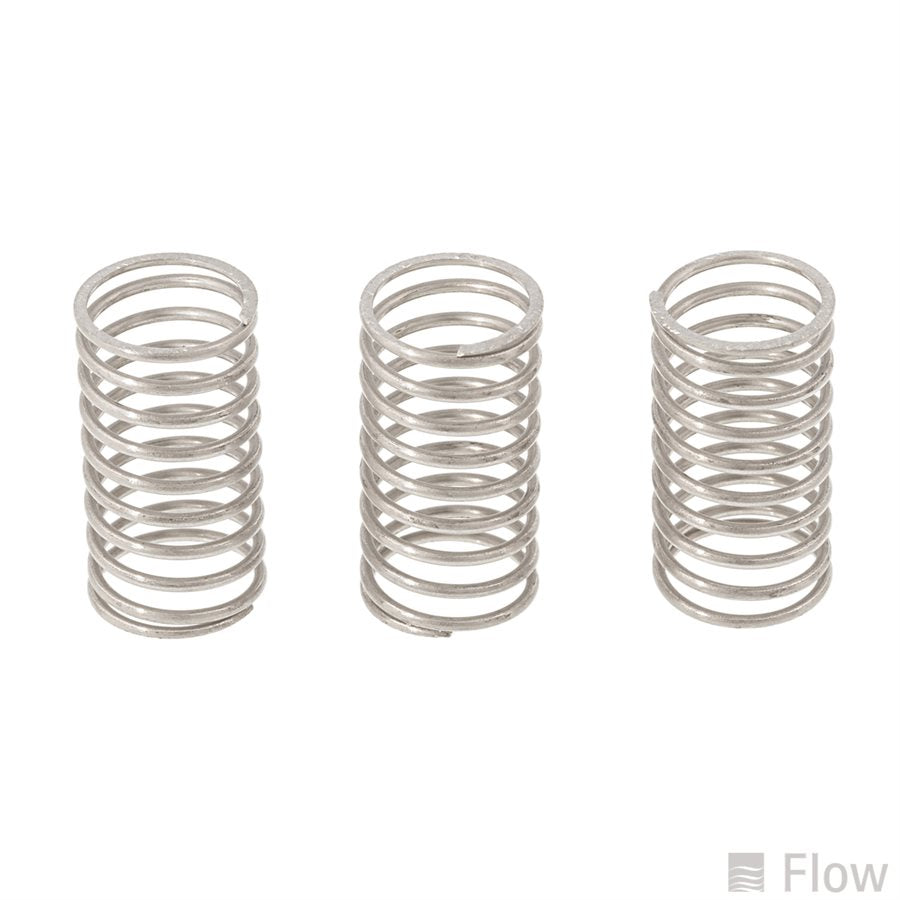

| A-12219 | 3 | SPRING;COMPRESSION;STAINLESS STEEL;NONE;.352 ID;.42 OD;.81 INCH;3.7 LBS/IN;CLOSED & GROUND |

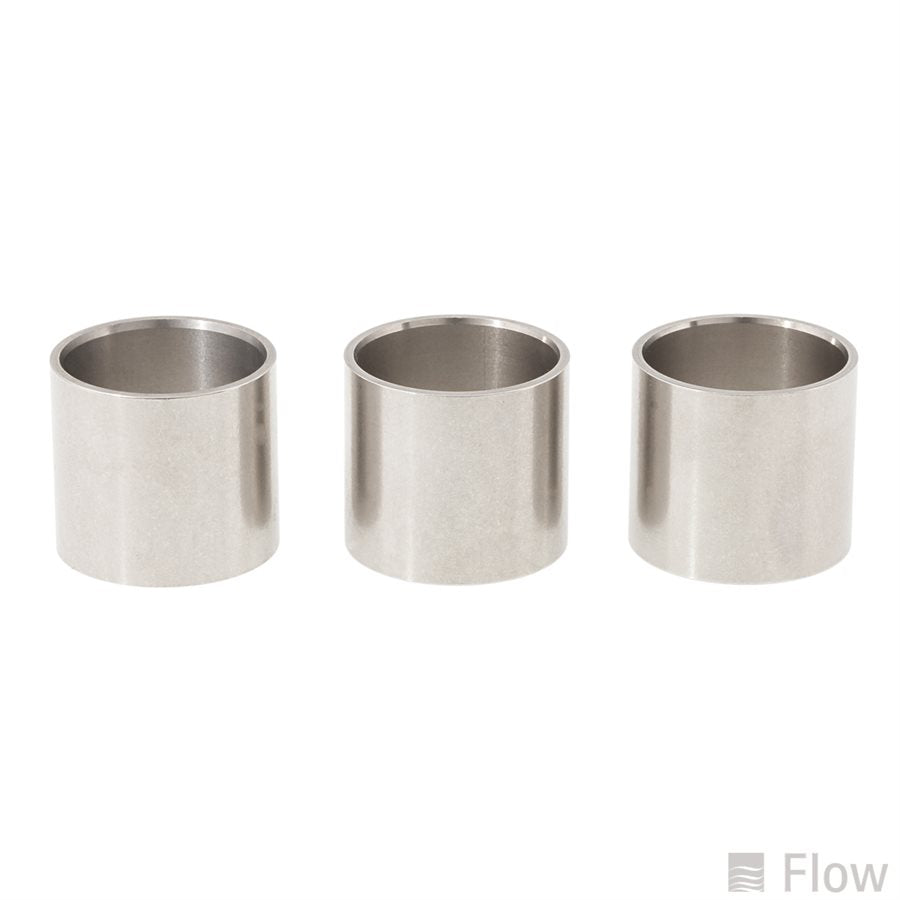

| 011350-1 | 3 | SLEEVE;NA;FILLER TUBE;EAGLE |
| A-20386-1 | 2 | LUBRICANT;ANTI-SEIZE;NA;5 GRAMS |
| 012306-DWG | 1 | HIGH PRESSURE ASSEMBLY;55 KSI HYPLEX;NA;NA |
| A-00720-31 | 3 | SEAL;ROD;NA;NITRILE;5/16 ID;9/16 OD;1/8 INCH |

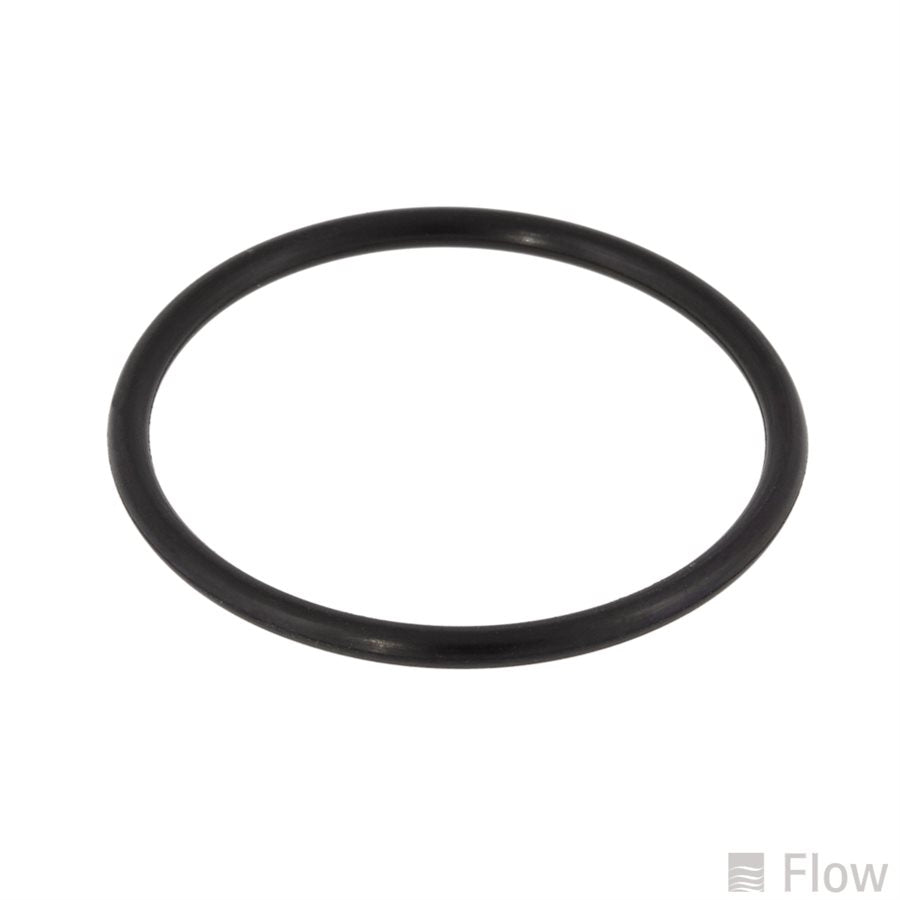

| A-0275-119 | 1 | O-RING;BUNA-N;70 (SHORE A);-119 |
| A-0275-120 | 1 | O-RING;BUNA-N;70 (SHORE A);-120 |
The OEM Difference
No one tests like Flow. And when you're dealing with pressures up to 90,000 PSI, it's advisable to use the safest most durable parts on the market.
